GE CARESCAPE B650 Features

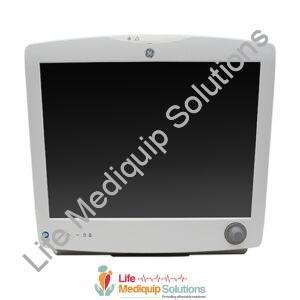

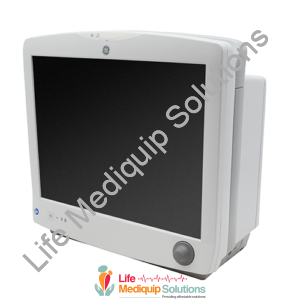

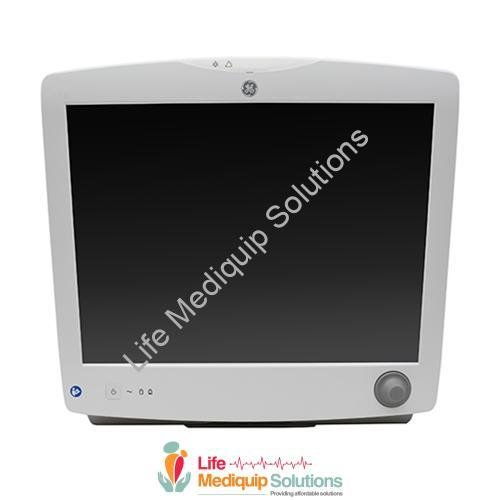

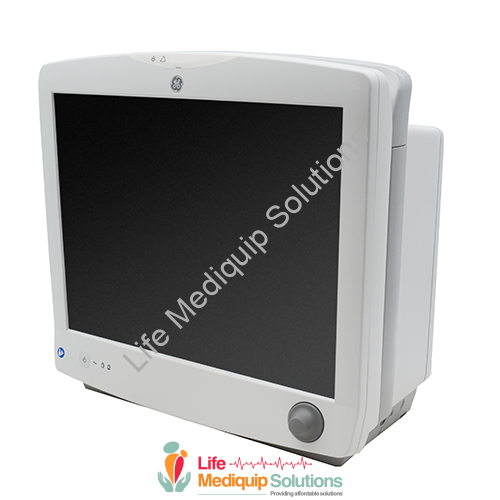

The? GE B650?is a patient monitor that has combined some of the best qualities in both the Marquette and Datex-Ohmeda platforms in one machine. The? CARESCAPE B650?can measure the standard parameters including; ECG, SpO2, NIBP, and patient temperature. The system also offers advanced tools to measure O2, CO2, N20, and anesthesia agent analysis. These advanced tools make the patient monitor ideal for a variety of areas Critical Care, Recovery Rooms, Neonatal Intensive Care Units, Intensive Care, and Operating Rooms. The Ge Carescape Monitor had a 15-inch LCD color display that is backlight and is available in both touchscreen and non-touchscreen options. The B650 system can store up to 24 hours of trending data and up to 36 arrhythmia events.

• Works with many existing Marquette and Datex-Ohmeda Components
• 15-inch LCD touchscreen display with a pivotal frame
• Dedicated software and parameters for Anesthesia, PACU, Critical Care, Emergency care and NICU
• User-controlled views from 8-14 waveforms with overlays and insteps
• Full Data Connectivity with the Carescape Patent Data Module for seamless patient data Capture in HIS/EMR
• Integrated USB ports for a keyboard, mouse, barcode reader, and other data entry device attachments

GE CARESCAPE B650 Specifications

Dimensions

• Height: 14.2? (36 cm)
• Width: 14.6? (37 cm)
• Depth: 8.67? (22 cm)
• Weight: 21.6 lbs (9.8 kg)

Battery

• Type: Exchangeable Lithium-Ion
• Voltage: 11.1V (nominal)
• Capacity: 6.21Ah (typical)
• Charge Time: 2-3 hours, depending on configuration
• Run Time: 1-2 hours, depending on configuration
• Battery Life: 150 cycles to 80% capacity

Display

• Size: 15? (38.1 cm) diagonal
• Type: Active matrix color TFT LCD
• Resolution: 1024 x 768 pixels (XGA)
• Number of Traces: 8 individual, up to 14 with overlays and insets
• Sweep Speed: 0.25, 6.25, 12.5, 25, 50 mm/sec

I/O Connectors

• Ethernet: 1 RJ45 for monitor network, 3 optional Rj45 for HIS, service, and Unity Network ID
• E-Port: 1 optional DB9F, for CARESCAPE Patient Data Module
• Display: 1 DVI out (VGA with adapter)
• USB Port: 2 USB 2.0, 2 optional USB 2.0

Mounting

• GCX Compatible
• FM Quick-Mount Compatible
• Integrated Carrying Handle

Paper Recorder (Optional, Built-in)

• Method: Thermal dot array
• Horizontal Resolutions: 24 dots/mm (600 dpi) @ 25 mm/sec
• Vertical Resolution: 8 dots/mm (200 dpi)
• Number of Waveform Channels: 4
• Paper Width: 50 mm (2?)
• Paper Length: 30 m (100 ft)
• Paper Speed: 1, 5, 10, 12.5, 25, and 50 mm/sec

Controls

• Trim Knob Control: Standard
• Touch screen: Optional, resistive technology
• Hard Keys: 3 standard keys: ON/Standby, Home, Pause Audio Alarm 11 additional keys in non-touch version: Trends, Monitor Setup, Data & Pages, Alarm Setup, Procedures, Print Waveforms, Freeze/Snapshot, NIBP Auto, NIBP Start/stop, Parameters, Zero All Pressures
• Remote control Ordered separately

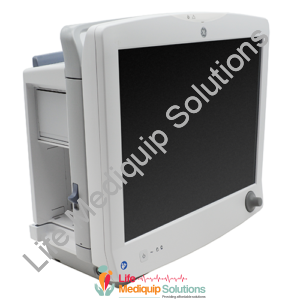

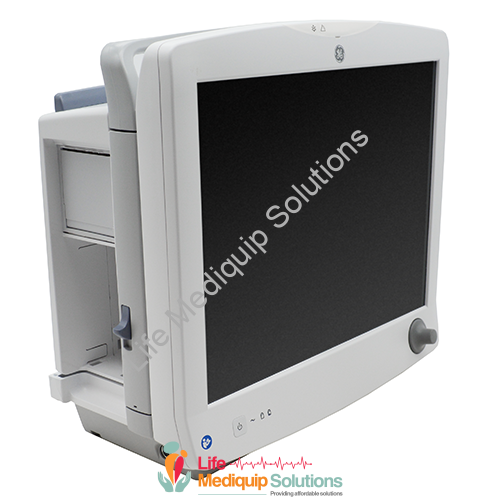

Pivoting module frame

• Features: Can be pivoted to a locked closed position, locked to an open 45? angle, or locked to a 90? open position. Support for CARESCAPE Patient Data Module or Patient Side Module
• Options: Two optional E-module slots and optional recorder

Patient Side Module (E-PSM, E-PSMP)

• ECG: 3, 5, 6 and 10 leadwires
• SpO2: GE SpO2
• NIBP: GE GE
• InvBP: 0 or 2
• Temp 2

CARESCAPE Patient Data Module (PDM)

• 3, 5, 6 and 10 leadwires
• SpO2: Masimo SET, Nellcor OxiMax
• NIBP: GE DINAMAP SuperSTAT algorithm
• InvBP: 0 or 4
• Temp: 2, Optional with C.O.
• Cardiac Output: Optional with temperature

Software Options

• Main Software: Care-area specific software packages to optimize workflows: OR, PACU, ICU, ED, NICU
• Other Software Options: Extended software options specific to each main software package

Alarms

• Categories: Patient status and system status
• Priority: 3 levels ? High, Medium and Low, In accordance with IEC 60601-1-8
• Notification: Audible and visual
• Setting: Default and individual
• Visual Alarm Notification: Red, yellow, cyan
• Audio Pause: 2 or 5 minutes
• Volume: 79 dB(A) (max) measured at 1m, high priority alarm

Power Specifications

• Universal Input Voltage Range: 100 to 240 Vac +/-10%, 50/60 Hz
• Power Consumption: 140 VA (max)
• Protection Class: Class I
• Grounding: Hospital grade
• Cooling: Natural convection, no fans

Operating Conditions

• Temperature: 10?C to 35?C (50?F to 95?F)
• Relative Humidity: 10% to 90% non-condensing

Storage Conditions

• Temperature: -20?C to 60?C (-4?F to 140?F)
• Relative Humidity: 10% to 90% non-condensing
