Maquet Servo U Features

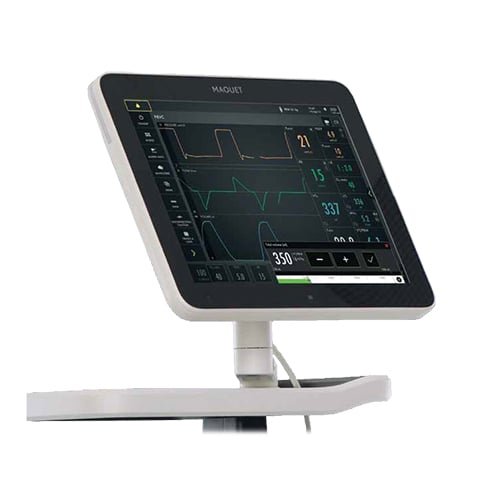

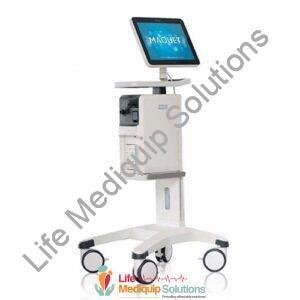

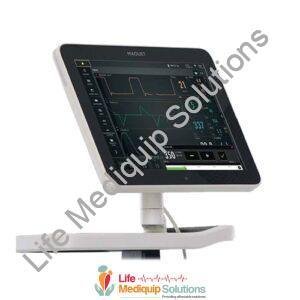

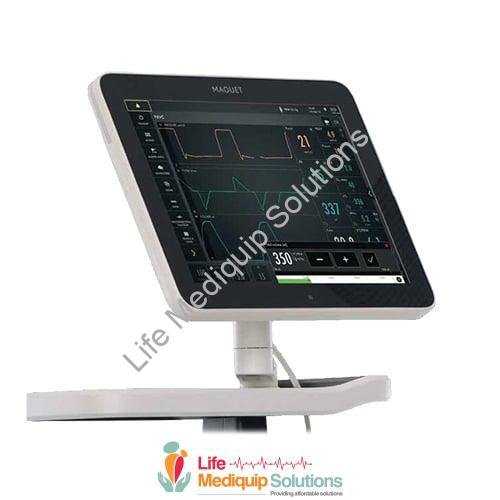

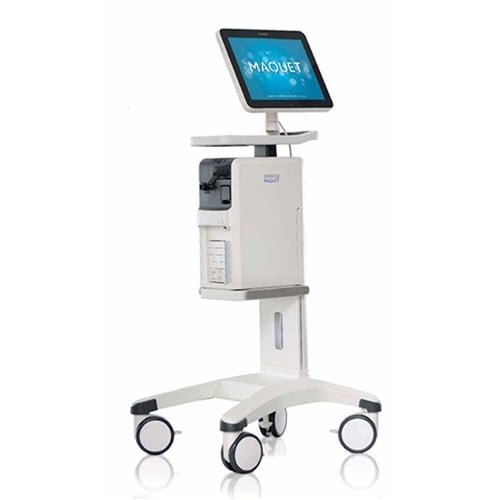

The Maquet Servo U is a ventilator that is intended for intensive care. The Servo-U gives the medical professional more ways to tailor each ventilation treatment to each patient while still protecting the integrity of their lungs. these phases of ventilation include controlled, supported, non-invasive, and spontaneous breathing. With a larger touch screen display it is easy to view and adjust the patient’s parameters. The Display screen can be rotated 360 degrees so it can be read no matter what side of the patient’s bed it is put on.

• Tools to support protective ventilation strategies.
• Context-based guidance, therapeutic workflows and intuitive user interaction for all functions.
• Upgradeable platform to meet future needs.

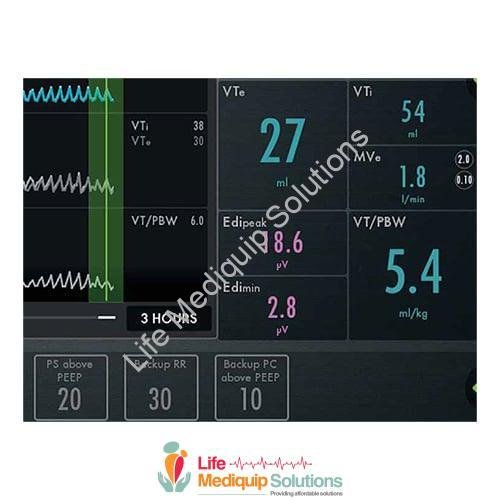

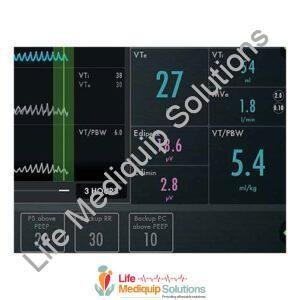

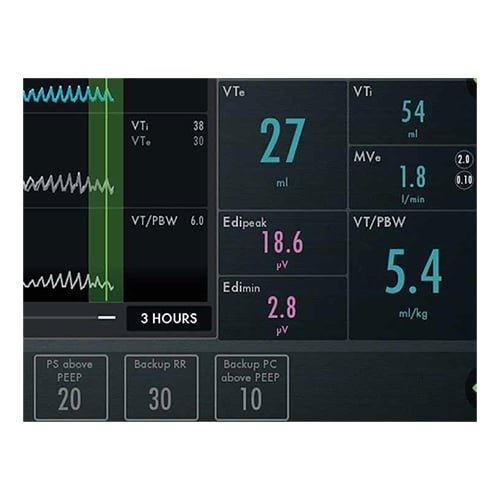

• Automatic Calculation of VT/PBW.

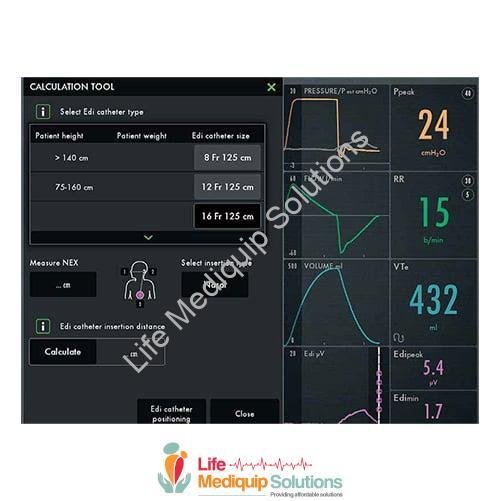

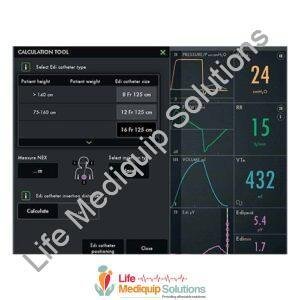

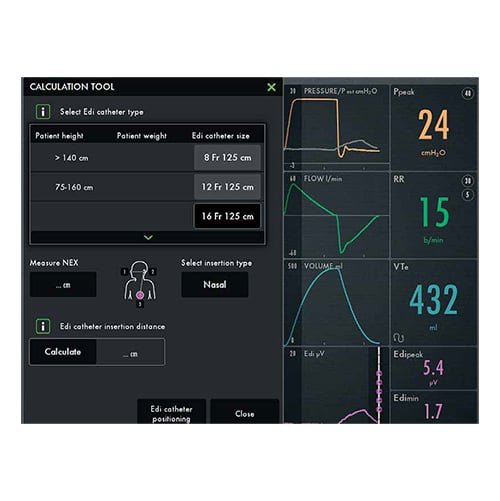

• On-Screen Tutorials.
• Ergonomic Design.

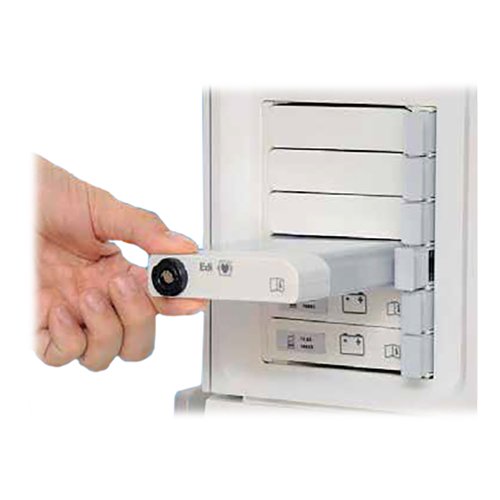

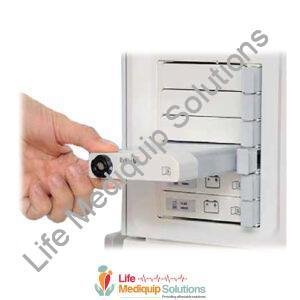

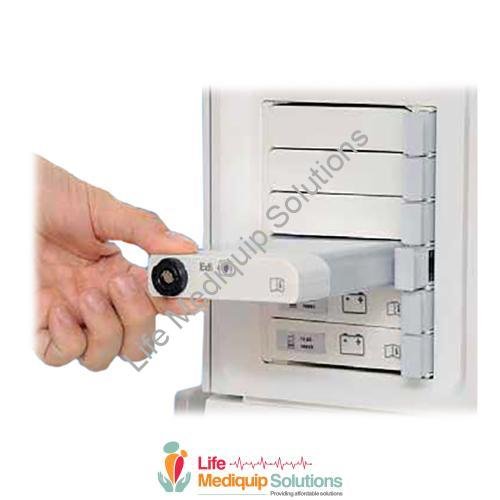

• Interchangeable Product Modules.

Maquet Servo-U Specifications

Dimensions (Without Cart)

• Height (Includes user interface): 32.5 in (82.6 cm)
• Width: 14.5 In (36.8 cm)
• Depth: 8.1 In (20.5 cm)

Weight (Without Cart)

• Approx. 50 lb 11 oz (23 kg)
• Patient unit 33 lb 1 oz (15 kg)
• User interface 8 lb 13 oz (4 kg)
• Handle 7 lb (3 kg)
• Cable holder and cable 2 lb 3 oz (1 kg)

Dimensions (With Cart)

• Height (Includes user interface): 53.9 in (136.8 cm
• Width (Includes Wheels): 25.5 In (64.7 cm)
• Depth (Includes Wheels): 21.5 In (54.7 cm)

Weight (With Cart)

• Approximately 77 lb 3 oz (35 kg)
• Base system approx. 50 lb 11 oz (23 kg)
• Mobile cart 27 lb 9 oz (12.5 kg)

General

• Patient range:
  • Neonatal: 11 oz to 17 lb 10 oz (0.3 to 8 kg)
  • Standard Configuration: 7 lb to 551 lb 2 oz (3 to 250 kg)
• Bias Flow
  • Adult: 2 l/min
  • Pediatric and Neonatal: 0.5 l/min
• Internal Compressible Factor: Max. 0.2 ml/cmH2O
• Gas Delivery System: Microprocessor controlled valves
• Maximum Airway Pressure: 125 cmH2O
• Method of Triggering: Flow, pressure, and Edi (with Edi module and Edi catheter)
• Inspiratory Flow Range:
  • Adult: 0 to 200 l/min
  • Pediatric and Neonatal: 0 to 33 l/min
• Pressure drop:
  • Max. 6 cmH2O at a flow of 60 l/s (insp. channel)
  • Max. 3 cmH2O at a flow of 60 l/s (exp. channel)
• PEEP Regulation: Microprocessor controlled valve
• Rise Time, Expiratory Flow Measurement: <12 ms for 10% to 90% response at flow of 3 to 192 l/min
• Expiratory Flow Range: 0 to 192 l/min

User Interface

• Type TFT-LCD touchscreen
• Size 14.4 x 11.8 in (366 x 300 mm)
• Viewing area 15 in XGA, 1024 x 768 pixels with a 24-bit color palette
• Weight Approximately 8 lb 13 oz (4 kg)

• Power supply, automatic range selection:
  • 100V to 120V AC, 2.5 A, 50 to 60 Hz
  • 220V to 240V AC, 1.5 A, 50 to 60 Hz
• External 12V DC: 12.0V to 15.0V DC, 10 A
• Typical min. power consumption (no optional modules, no ongoing battery charging, normal panel backlight) 110 VA, 40 W
• Typical max. power consumption (with CO2, Edi and Y sensor modules, ongoing battery charging, max. panel backlight) 210 VA, 85 W
• Plug-in battery module:
  • Battery backup (nickel-metal hydride, NiMH) Six battery module slots ? two batteries are delivered with the ventilator
  • Battery capacity Rechargeable, 12V, 3.5 Ah each
  • Battery backup time Ranging from 50 minutes (2 batteries) to 150 minutes (6 batteries)
  • Recharge time Approximately 3 hr/battery

Operating Conditions

• Temperature 50? to 104?F (10? to 40?C)
• Relative humidity 15% to 95% non-condensing
• Atmospheric pressure 660 to 1060 hPa
• Lowest pressure in patient circuit -400 cmH2O

Non-Operating Conditions

• Temperature -13? to 140? F (-25? to 60?C)
• Relative humidity <95% condensing
• Atmospheric pressure 470 to 1060 hPa
• Lowest pressure in patient circuit N/A
