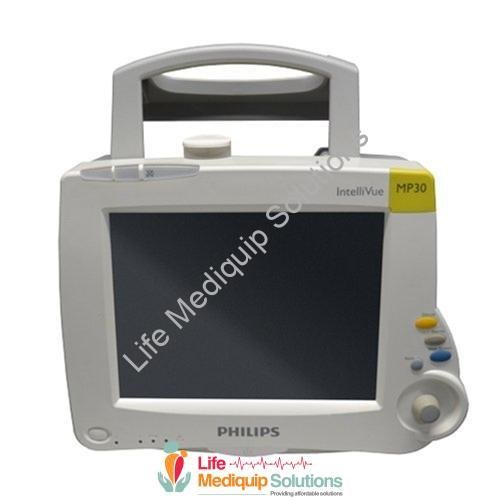

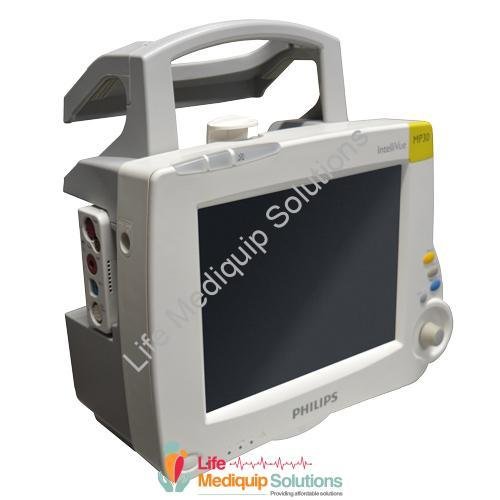

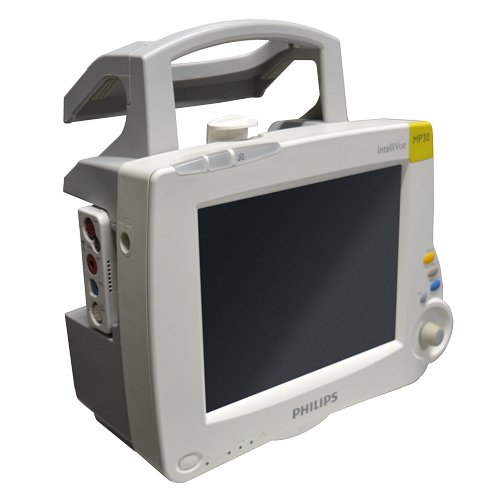

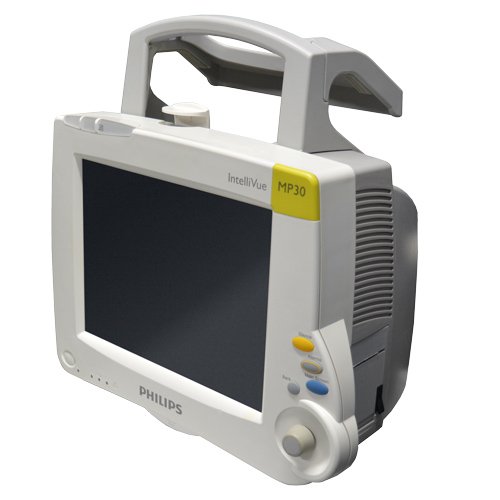

Philips MP30 Features:

The? Philips MP30 ? is a compact patient monitor that can provide basic measurements and vital signs. The?IntelliVue MP30?can also be connected to the Philips Muli-Measurement Modules. The parameters the MP30 offers include; capnography, 12-lead ECG, non-invasive and invasive blood pressure, respiration, SpO2, temperature, BIS, and cardiac output. The patient monitor features a flexible screen allowing customizable configurations and touchscreen navigation.

• 6cm (10.4in) color SVGA display with 3 or 4 waveforms is bright and easy to read.
• Comfortable handle and rugged housing for easy portability.
• Lightweight, at only 5.8 kg (13 lbs.) including Multi-Measurement Server and one battery.
• Up to five hours of battery operation* with dual lithium-ion batteries.
• Touchscreen operation makes many functions accessible through simple, one-touch commands. (Touchscreen is available on MP30 only.)
• Wired and wireless connectivity with easy switching from one mode to another.
• Navigation Point operation is designed for easy information input and onscreen navigation.
• Optional integrated recorder offers convenient documentation whenever its needed.
• 5-hour battery time based on these conditions: basic monitoring, 2 new batteries, automatic brightness reduction, Multi-Measurement Server in use, NIBP measurements every 15 minutes.
• 4-hour battery time based on these conditions: extended monitoring, 2 new batteries, automatic brightness reduction, Multi-Measurement Server and Server Extension in use, NIBP measurements every 15 minutes, and recording every 15 minutes.

Philips MP30 Specifications

Dimensions

• Height: 11 in (275mm)
• Width: 113.6 in (345 mm)
• Depth: 9 in (230 mm)
• weight: 13 lbs

Environmental

• Operating Temperature Range: 0 to 40? C (32 to 104? F)
• Operating when charging battery or equipped with IntelliVue Instrument Telemetry: 0 to 35? C (32 to 95 ? F)
• Non-operating Temperature Range: -20 to 60? C (-4 to 140 ? F)
• Battery Storage Temperature range: -20 to 50? C (-4 to 122 ? F)
• Operating Humidity Range: 20% to 85% Relative Humidity (RH) (noncondensing)
• non- Operating Humidity Range: 5% to 85% Relative Humidity (RH)
• Operating Altitude Range: -500 m to 3000 m (10000 ft)
• Momo- Operating Altitude Range: -500 m to 12000 m (40000 ft)

Battery Specifications

• Height: 0.78 in ( 19.8 mm
• Width: 5.866 in (149 mm)
• depth: 3.504 in (89 mm)
• Weight: 1.08 bus (490 gk)
• Nominal Voltage 10.8 Volt
• Rated Capacity at discharge C/5 6000 mAh
• Continuous Discharge Capability 6.5 A
• Battery Type: Smart Battery 10.8V, 6000mAh, Lithium Ion

General

• 26cm (10.4″) color touchscreen display with 3 or 4 waveforms.
• Comfortable handle and rugged housing for easy portability.
• Lightweight, at only 5.8 kg (13 lbs.) including Multi-Measurement Module.
• Touchscreen operation makes many functions accessible through simple, one-touch commands.
• Navigation Point operation is designed for easy information input and onscreen navigation.
• The optional integrated recorder offers convenient documentation whenever it’s needed.
• Optional wired and wireless connectivity with easy switching from one mode to another.
• Option to add Anesthesia, Intensive Care Package, or Neonatal Monitoring.
