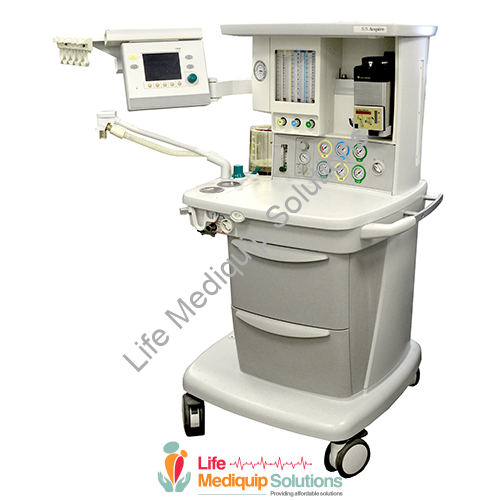

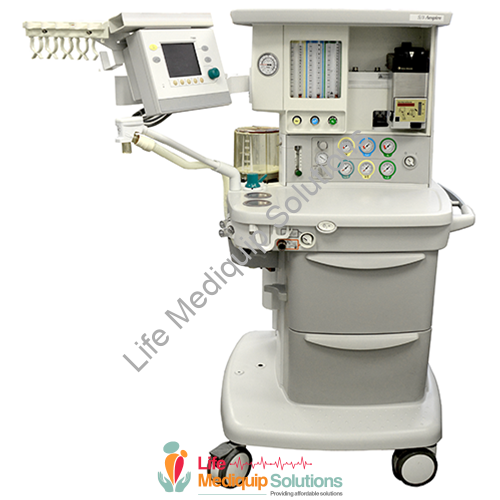

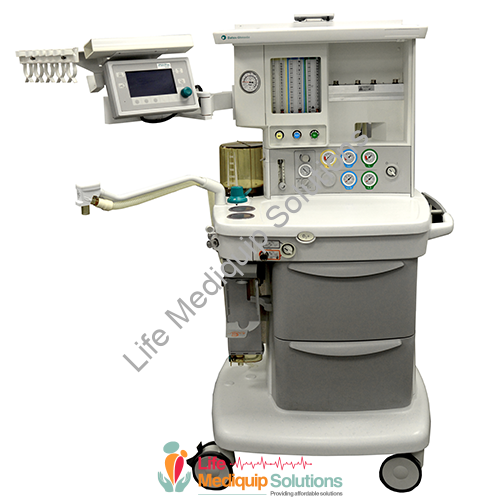

GE Datex Ohmeda Aespire 7100 Features:

The GE Aespire Anesthesia Machine: Advanced ventilation & user-friendly design for exceptional patient care. Explore features & benefits of ambulatory surgery centers.is a compact anesthesia machine. The?Aespire 7100?is equipped with a fully integrated workstation, with a large workspace and connections for additional O2 and suction control. Additionally, the anesthesia machine can be connected to the?GE Datex Ohmeda S/5 7100 Monitor? for additional monitoring parameters. The Aespire features the latest technology in the Advanced Breathing Systems (ABS). There are fewer tubes to connect which reduces the risk of potential leaks and misconnections, improving the patient’s safety.

Soma Tech Intl offers two different ventilator options in the GE Datex Ohmeda S/5 Anesthesia Machine. The GE Aespire can either have a 7100 ventilator or a 7900 ventilator. Both of these ventilators are microprocessor-based, electronically controlled, and pneumatically driven. The S/5 Aspire’s ventilators have built-in monitoring for inspired oxygen, airway pressure, and exhaled volume. These ventilators are designed to be used to aid in the delivery of anesthesia and are part of the GE Datex Ohmeda S/5 Aespire anesthesia machine.

7100 Safety Features

• Dual redundant airway overpressure protection.
• Volume over-delivery limits and protection.
• Proprietary hose connections and fixed manifolds.
• 10 VA electrical power limiting to the potential oxygen-enriched environment.
• 150 psi burst overpressure protection.

Ventilator Monitoring Boards

The 7100 ventilator is accompanied by a Ventilator Monitoring Board (VMB) which serves as the interface between the ventilator’s control board and the breathing system sensors and switches. It passes different switch functions through to the ventilator control module and provides power to the task light. Respiratory gas flow, to and from the patient, is monitored by measuring the differential pressure across a variable orifice in each flow sensor. The pressure transducers measure the differential pressure on the VMB.

GE Datex Ohmeda S/5 Aespire 7100 Anesthesia Machine Features

• Power-up is quick and easy in your fast-paced environment.
• Minimum 02 flow of 50 mL available with dual flow tubes, ensures accuracy in low flow situations.
• Enhanced hose and cable management reduces disconnects and clutter.
• Lightweight and compact for easy maneuverability.
• Larger work surface for supplies and chart.
• Two large drawers provide more storage.
• Removable drawer inserts conveniently store small items.
• Smooth, durable surfaces for cleaning ease.

GE Datex Ohmeda Aespire Specifications

Dimensions

• Height: 52.9 in (134.5 cm)
• Width: 28.3 in (72 cm)
• Depth: 28.7 in (73 cm)
• Weight: 238lbs (108 kg

top Shelf

• weight limit 75 lbs (34kg)
• Width: 26 in (66 cm)
• Depth:15.75 in (40 cm

Work Surface

• Height: 32.2 in (81.7 cm)
• Size: 334 in-2 (2160 cm)

DIN Rail

• Side of Machine: 13.6 in (34.5 cm)

Drawers (internal dimensions)

• Height: 6.9 in (17.5 cm)
• Width: 13 in (33 cm)
• Depth: 10.4 in (26.5 cm)

Absorber Bag Arm (optional)

• Arm Length: 12 in (30.5 cm)
• Bag arm height (adjustable): 34.3 to 40.9 in (87 to 104 cm)

Electrical

• Current Leakage: 100/120 V: < 300?A
• Power input: 100-120 Vac, 50/60 Hz
• Power Cord: Length: 5m/16.4 ft
• Rating: 15A @ 120 Vac

Operating Environmental Conditions

• Temperature: 10? to 40?C/50? to 104?F
• Humidity: 15 to 95% relative humidity
• Altitude: ?440 to 3565 m/500 to 800 mmHg

Storage Environmental Conditions

• Temperature: -15? to 50?C/-5? to 122?F
• Humidity: 10 to 95% relative humidity (including condensing) per IEC 68-2-3
• Altitude: -440 to 3565 m/500 to 800 mmHg
• Oxygen cell storage: -15? to 50?C/5? to 122?F; 10 to 95% relative humidity; 500 to 800 mmHg

Cost savings:

• Only one scheduled maintenance check per year.
• Tec? 7 vaporizers are planned factory service free.
• Low flow anesthesia supported.

Highly effective ventilation:

• Utilizing the proven performance of the 7100 ventilators, the S/5 Aespire helps provide highly effective ventilation for standard.
• The bellows provide a quick visual reference to the patient’s breathing stability.
• The intuitive user interface allows constant visual confirmation of function.
• Software is easily upgraded utilizing innovative memory sticks, so you can choose the ventilation capabilities you need.
• Standard software includes Volume Control ventilation, integrated volume and oxygen monitoring, electronic PEEP, and alarm management, important for every case.
• Optional capabilities include Pressure Mode, pressure waveform, and tidal volume compensation.

Innovative integration:

• Optional suction control eliminates the need for stand-alone suction.
• Optional auxiliary O2 supplies a pure oxygen source for use with a nasal cannula.
• The LED light strip provides bi-level work surface illumination.
• Auxiliary Common Gas Outlet facilitates low-pressure leak test.
• High-quality pneumatic flow mixing.
