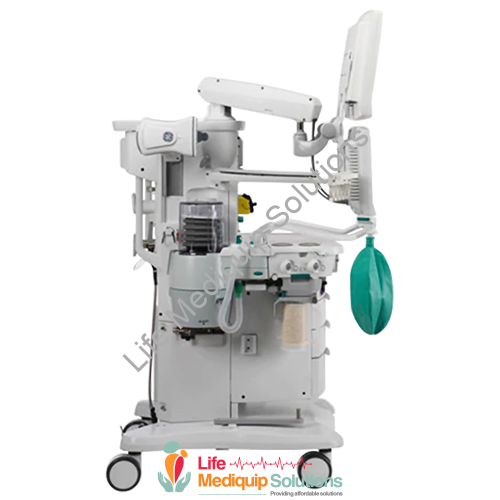

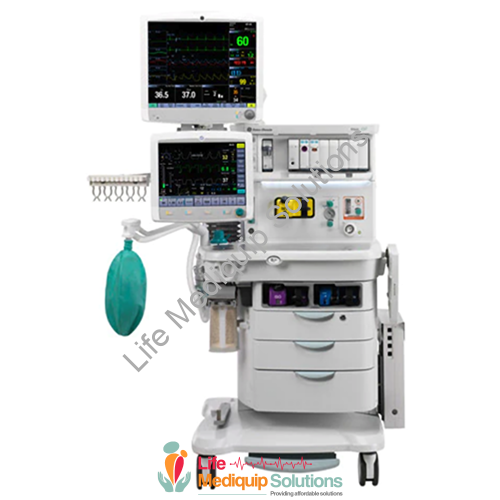

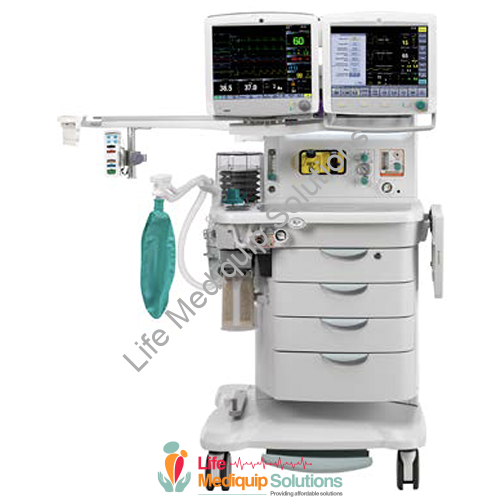

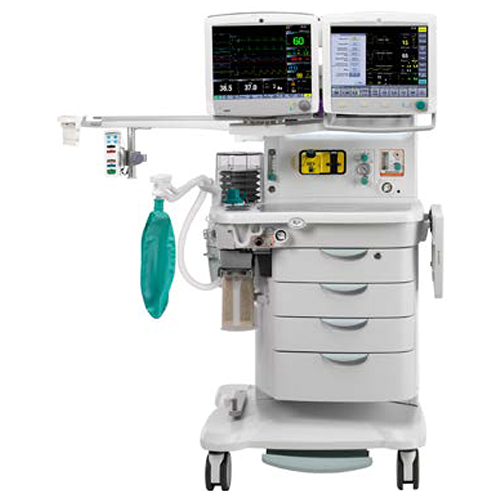

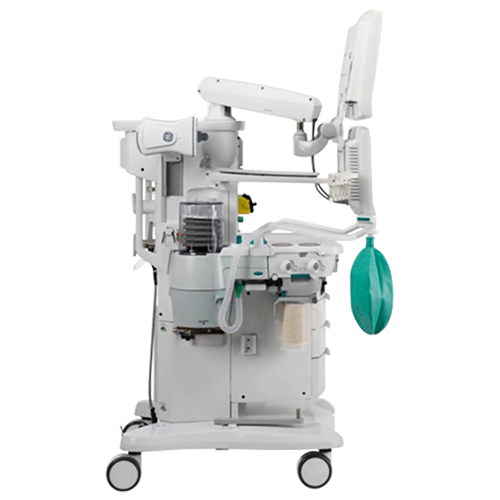

GE Aisys CS2 Features

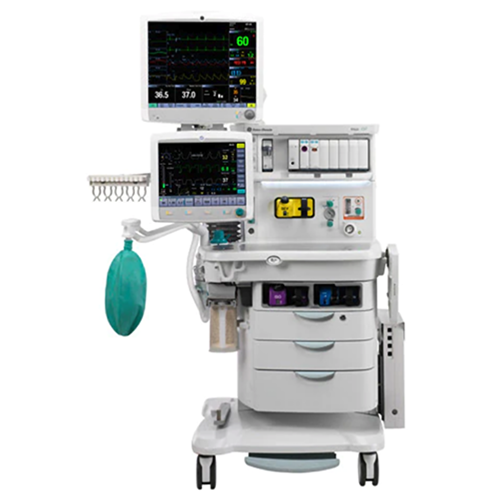

The GE Aisys CS2 is an anesthesia machine that is a technologically sophisticated class of digital Carestation that manages an intuitive user interface. It features a movable 15-inch touch ventilator display monitor with a Carescape-inspired experience. An electronic agent control helps provide the? Aisys CS2? has exceptional benefits, such as automatic record-keeping of set agent concentration and agent usage calculations.
- Moveable 15? touch ventilator monitor.
- Integrated gas with Carescape respiratory technology.
- Configurable quick picks for FGF settings and O2%.
- Compact breathing system designed for low flow to help provide fast gas kinetics for rapid wash-in and wash-out.
- Digitally controlled vaporizer, ventilator, and gas delivery.
- Responsiveness to changes in patient status is measured in milliseconds.
- Advanced breathing system (ABS) ensures a fast circuit response to assist clinicians with anesthesia delivery.
GE Aisys CS2 Specifications
Dimensions
- Height: 52.7 in (133.9 cm)
- Width: 26.8 in (68 cm)
- Depth: 82 in (32.3 cm)
- Weight: 419 lb (190 kg)
Ventilator Performance
- Pressure Range at Inlet: 240 kPa to 700 kPa/35 psig to 102 psig
- Peak Gas Flow: 120 L/min + fresh gas flow
- Flow Valve Range: 1 to 120 L/min
- Flow Compensation Range: 200 mL/min to 15 L/min
Patient Spirometry
- Pressure-Volume Loop
- Flow-Volume Loop
- Pressure-Flow Loop
- Airway Pressure and Flow Waveforms
- Adjustable Low and High Alarm Limits for Ppeak and MVexp
- Detection Through Machine Flow Transducers.
Ventilator Accuracy
- Volume Delivery: > 210 mL = better than 7%; ? 210 mL = better than 15 mL; < 60 mL = better than 10 mL
- Pressure Delivery: ?10% or ?3 cmH2O
- PEEP Delivery: ?1.5 cmH2O
- Volume Monitoring: > 210 mL = better than 9%; ? 210 mL = better than 18 mL; < 60 mL = better than 10 mL
- Pressure monitoring: ?5% or ?2 cmH2O
Flow Transducer
- Type: Variable orifice flow sensor
- Dimensions: 22 mm OD and 15 mm ID
- Location: Inspiratory outlet and expiratory inlet
Oxygen Sensor
- Type: Optional galvanic fuel cell or paramagnetic with Respiratory Module option
Ventilator Screen
- Display Size: 38 cm/15 in
- Pixel Format: 1024 (H) x 768 (V)
Communication Ports
- RS-232C compatible serial interface
- Ethernet
- Datex-Ohmeda device interface solutions port
- USB port
- VGA Output
Ventilation Parameters
- Tidal Volume Range: 20 to 1500 mL (Volume Control, PCV-VG, SIMV, and SIMV PCV-VG modes)
- Incremental Settings: 20 to 50 mL (increments of 1 mL); 50 to 100 mL (increments of 5 mL); 100 to 300 mL (increments of 10 mL); 300 to 1000 mL (increments of 25 mL); 1000 to 1500 mL (increments of 50 mL)
- Minute Volume Range: Less than 0.1 to 99.9 L/min
- Pressure (P) Inspired Range: 5 to 60 cmH2O (increments of 1 cmH2O); 5 to 1500 mL volume delivery
- Pressure (P) Max Range: 12 to 100 cmH2O (increments of 1 cmH2O)
- Pressure (P) Support Range: Off, 2 to 40 cmH2O (increments of 1 cmH2O)
- Rate: 4 to 100 breaths per minute for Volume Control, Pressure Control, and PCV-VG; 2 to 60 breaths per minute for SIMV, PSVPro, SIMV PCV-VG; 4 to 60 breaths per minute for CPAP+PSV (increments of 1 breath per minute)
- Inspiratory/Expiratory Ratio: 2:1 to 1:8 (increments of 0.5)
- Inspiratory Time: Inspiratory time: 0.2 to 5.0 seconds (increments of 0.1 seconds) (SIMV, PSVPro, SIMV PCV-VG, and CPAP+PSV)
- Trigger Window: 0 to 80% (increments of 5%)
- Flow Trigger: 1 to 10 L/min (increments of 0.5 L/min) 0.2 to 1 L/min (increments of 0.2 L/min)
- Inspiration Termination Level: 5 to 75% (increments of 5%) – Rise Rate 1-10 (PCV, PCV-VG, SIMV, PSVPro, CPAP+PSV and SIMV PCV-VG)
- Inspiratory Pause Range: 0-60%
Anesthetic Agent Delivery
- Vaporizer: Aladin2 Cassette – Isoflurane, Desflurane, Sevoflurane, or Enflurane
- Number of Active Positions: 1
- Total (Enf, Iso, Sev) Capacity: 220 mL
- Total (Des) Capacity: 240 mL
- When cassette indicator shows empty (Enf, Iso, Sev): 125 mL (95 mL residual volume)
- When cassette indicator shows empty (Des): 140 mL (100 mL residual volume)
