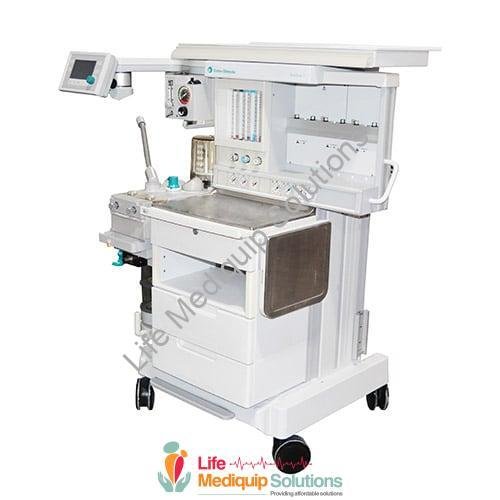

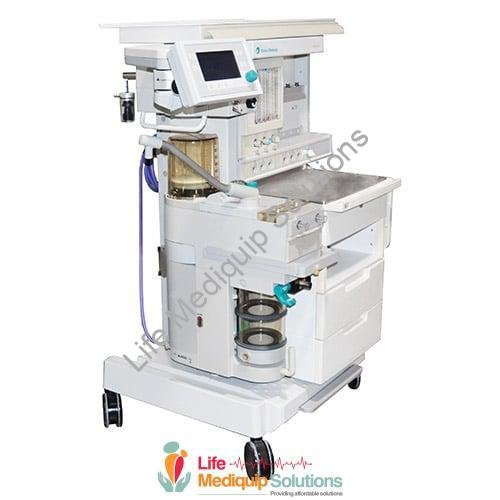

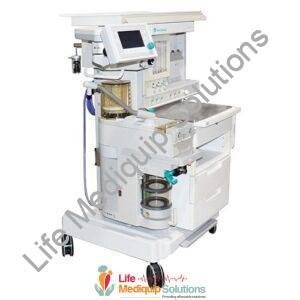

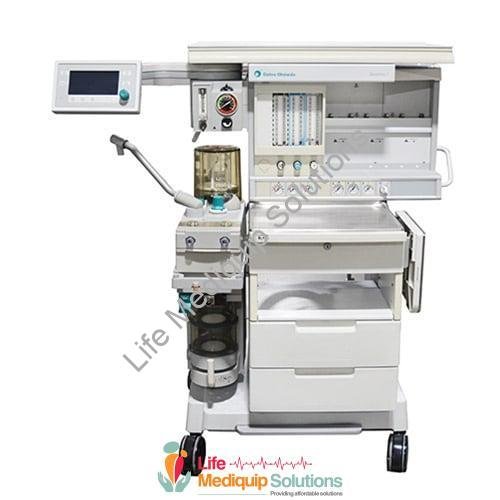

GE Datex Ohmeda Aestiva 5 Features

The?GE Datex Ohmeda Aestiva 5 GE AESTIVA ? is an anesthesia machine with an integrated breathing circuit, which can provide intensive care ventilation. The? Aestia 5? is a flexible system, allowing you to customize the anesthesia and ventilation flow. The machine comes in two options for ventilation, the 7100 or the 7900 SmartVent giving you a higher level of control. The anesthesia machine can safely produce low-flow anesthesia and can reduce the number of anesthetic agents. This allows the system to provide consistent delivery of measurements such as tidal volume and gas flow. The Datex Ohmeda system additionally offers a few varieties of vaporizer configurations ranging from two or three connections. The anesthesia machine also comes in a compact version,?Aestiva 5 Compact?, and a version for MRI Use, the?Aestiva 5 MRI?. The Aestiva 5 allows for a wide range of ventilation for patients from pediatrics to adults. The GE Datex Ohmeda Anesthesia 5.

• Advanced breathing system with ventilation
• Ventilation options: 7100 and 7900 SmartVent
• 2 or 3 vaporizer configurations
• Optional Vaporizers: Tec 5, Tec, 6, Tec 7
• Customizable drawers and shelves
• Dual Air Flow tube for low-flow
• Built-in machine diagnostics

GE Datex Ohmeda Aestiva 5 Specifications

Dimensions (2 Vaporizers)

• Height: 53.4? (135.8 cm)
• Width: 29.5? (75 cm)
• Depth: 32.7? (83 cm)
• Weight: 300 lb (136 kg)

Dimensions (3 Vaporizers)

• Height: 53.4? (135.8 cm)
• Width: 36.6? (93 cm)
• Depth: 32.7? (83 cm)
• Weight: 340 lb (154 kg)

Work Surface

• Height: 34.5? (87.5 cm)
• Width: 18.5? (47 cm)
• Depth: 12.4? (31.5 cm)

Modes of Ventilation

• Volume Control Mode: With tidal volume compensation
• Pressure Mode: (optional)

Ventilation Parameters

• Tidal volume range: 45 to 1500 mL
• Incremental Settings: 45 to 100 mL (increments of 5 mL); 100 to 300 mL (increments of 10 mL); 300 to 1000 mL (increments of 25 mL); 1000 to 1500 mL (increments of 50 mL)
• Pressure (PInspired) Range: 5 to 50 cm H2O (increments of 1 cm H2O) (Pressure mode)
• Rate: 4 to 65 breaths per minute (increments of 1 breath per minute)
• Inspiratory/expiratory Ratio: 2:1 to 1:6 (increments of 0.5)
• Inspiratory Pause Adjust: 5% to 60% of the inspiratory time (increments of 5%)

Positive End Expiratory Pressure (PEEP)

• Type: Integrated, electronically controlled
• Range: OFF, 4 to 30 cm H2O (increments of 1 cm H2O)

Ventilator Monitored Values

• Tidal volume: 5 to 1500 mL, 1 mL resolution
• Minute volume: 0 to 99.9 L/min, 0.1 L/min resolution
• Breathing rate: 0 to 65 breaths per minute, 1 breath per minute resolution
• Oxygen Percentage: 5% to 110%, 1% resolution
• Airway pressure: ?9 to 99 cm H2O, 1 cm H2O resolution

Delivery/Monitoring Accuracy

• Volume delivery: > 200 mL = better than ?10% Set TV; 75 to 200 mL = better than ?20 mL; < 75 mL = better than ?15 mL
• Pressure (PInspired) Delivery Repeatability: ?2 cm H2O
• PEEP Delivery Repeatability: ?2 cm H2O
• Volume Monitoring: > 200 mL = better than ?10%; 75 to 200 mL = better than ?20 mL; < 75 mL = better than ?15 mL
• Pressure Monitoring: Better than ? 2 cm H2O or ? 5% of reading (whichever is greater)

Delivery

• Vaporizers: Tec 5, Tec 6 Plus, Tec 7
• Number of Positions: 2 or 3
• Mounting: Tool-free installation Selectatec manifold interlocks and isolates vaporizers

Ventilator Pneumatics

• Pressure Range at Inlet: 240 kPa to 700 kPa/35 psig to 100 psig
• Peak Gas Flow: 70 L/min + fresh gas flow
• Flow range: 2 to 70 L/min
• Flow Compensation Range: 200 mL/min to 15 L/min

Battery Back-up

• Backup power: Demonstrated battery time under typical operating conditions is 90+ minutes when fully charged. Battery time under extreme conditions is 30 minutes.
• Battery type: Internal rechargeable sealed lead acid
