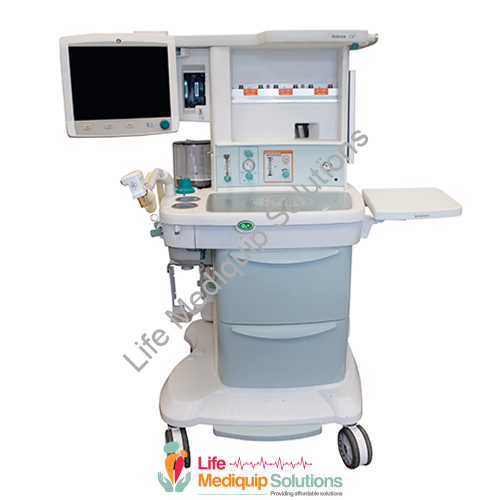

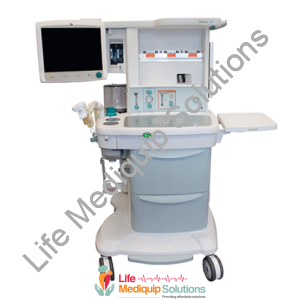

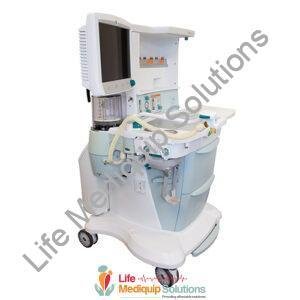

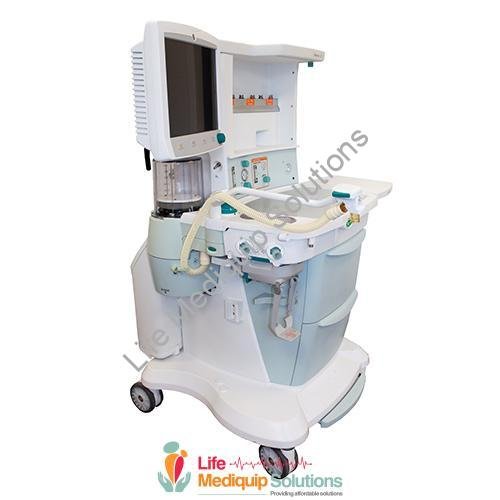

GE Avance CS2 Features

GE AISYS CS2 is a compact anesthesia machine that can also be a fully integrated Carestation. The system combines anesthesia delivery, patient monitoring, and data management in one machine. In addition the?Avance CS2?anesthesia machine offers ventilation capabilities and uses the GE 7900 Smartvent ventilator with the system. This allows the system to quickly and accurately mix anesthetic gases rapid time when the situation occurs. The Advanced Breathing System in the Avance System helps minimize the number of tubing connections and circuit volume from the machine.

The Avance SC2 comes with a 15-inch color touchscreen display, that offers quick access to menus and additional settings. There are additional buttons next to the touchscreen that can be used for the most commonly used functions.

• Movable 15?? touch screen with Carescape user interface for the unified Carestation user experience with GE Carescape monitors.
• eco flow provides information that may help clinicians mitigate the risk of hypoxic mixtures during low and minimum flow.
• eco flow for visualizing agent consumption and helping in mitigating wasteful over-delivery of fresh gas flow.
• User configurable?Quick Picks? for rapid selection of FiO2 and total flow combinations.
• Compact breathing system specifically designed for low flow to help provide fast gas kinetics for rapid wash-in and wash-out.
• Continual fresh gas flow with fresh gas flow compensation during mechanical ventilation.
• Central brake.
• Top shelf mounting rails.
• Metal work surface.

GE Avance CS2 Specifications

Physical Specifications

• Height: 54″ (139 cm)
• Width: 30″ (77 cm)
• Depth: 29.9″ (76 cm)
• Weight: 324.08 lbs (147 kg)

Top Shelf

• Weight Limit: 75 lbs (34 kg)
• Width: 27.4″ (69.7 cm)
• Depth: 17.3″ (44 cm)

Work Surface

• Height: 32.2 in (81.7 cm)
• Size: 409 in²?(2640 cm²)

Casters

• Diameter: 5.2″ (13 cm)
• Brakes: Central Brake

Modes of Ventilation – Standard

• VCV (Volume Control) Mode with tidal volume compensation

Modes of Ventilation – Optional

• Pressure Control
• Pressure Controlled Ventilation-Volume Guaranteed (PCV-VG)
• SIMV (Synchronized Intermittent Mandatory Ventilation) (volume and pressure)
• PSVPro* (Pressure Support with Apnea backup)
• CPAP+PSV (Pressure support mode)
• SIMV PCV-VG

Ventilator Parameter Ranges

• Tidal volume range: 5 to 1500ml ( Volume Control, PCV-VG and SIMV volume 20 to 1500ml) (PCV modes 5 to 1500ml)
• Incremental settings:
  • 20 to 50 mL (increments of 1 mL)
  • 50 to 100 mL (increments of 5 mL)
  • 100 to 300 mL (increments of 10 mL)
  • 300 to 1000 mL (increments of 25 mL)
  • 1000 to 1500 mL (increments of 50 mL)
• Minute volume range: Less than 0.1 to 99.9 L/min
• Pressure (Pinspired) range: 5 to 60 cmH2O (increments of 1 cmH2O) 5 to 1500 mL volume delivery
• Pressure (Pmax) range: 12 to 100 cmH2O (increments of 1 cmH2O)
• Pressure (Psupport) range: Off, 2 to 40 cmH2O (increments of 1 cmH2O)
• Rate: 4 to 100 breaths per minute for Volume Control and Pressure Control; 2 to 60 breaths per minute for SIMV, PSVPro and SIMV PCV-VG; 4 to 60 bpm for CPAP+PSV (increments of 1 breath per minute)
• Inspiratory/expiratory ratio: 2:1 to 1:8 (increments of 0.5)
• Inspiratory time: 0.2 to 5.0 seconds (increments of 0.1 seconds) (SIMV, PSVPro and CPAP PSV)
• Trigger window: 0 to 80% (increments of 5%)
• Flow trigger: 1 to 10 L/min (increments of 0.5 L/min) 0.2 to 1 L/min (increments of 0.2 L/min)
• Inspiration termination level: 5 to 75% (increments of 5%)
• Inspiratory Pause range: 0-60%

Positive End Expiratory Pressure (PEEP)

• Type: Integrated, electronically controlled
• Range: OFF, 4 to 30 cmH2O (increments of 1 cmH2O)

Ventilator Performance

• Pressure range at inlet: 240 kPa to 700 kPa (35 psig to 100 psig)
• Peak gas flow: 120 L/min + fresh gas flow
• Flow valve range: 1 to 120 L/min
• Flow compensation range: 150 mL/min to 15 L/min

Delivery Monitoring Accuracy

• Volume delivery:
  • > 210 mL = better than 7%
  • ? 210 mL = better than 15 mL
  • < 60 mL = better than 10 mL
• Pressure delivery: ?10% or ?3 cmH2O
• PEEP delivery: ?1.5 cmH2O
• Volume monitoring:
  • > 210 mL = better than 9%
  • ? 210 mL = better than 18 mL
  • < 60 mL = better than 10 mL
• Pressure monitoring: ?5% or ?2 cmH2O

Ventilator Components

• Type: Variable orifice flow sensor
• Dimensions: 22 mm OD and 15 mm ID
• Location: Inspiratory outlet and expiratory inlet

Oxygen Sensor

• Type: Optional galvanic fuel cell or paramagnetic with Airway Module option

Ventilator Display

• Display size: 15 inch
• Pixel format: 1024 x 768

Battery Backup

• Backup power: Demonstrated battery time is up to 90 minutes when fully charged.
• Battery time under extreme conditions is 30 minutes.
• Battery type: Internal rechargeable sealed lead acid

Communication Ports

• RS-232C compatible serial interface
• Ethernet
• Datex-Ohmeda device interface solutions port
• USB port
• VGA Output

Anesthetic Agent Delivery

• Anesthesia Vaporizers: Tec* 6 Plus, Tec 7
• Number of positions: 2 (3 as an option)
• Mounting: Tool-free installation Selectatec* manifold interlocks and isolates vaporizers
