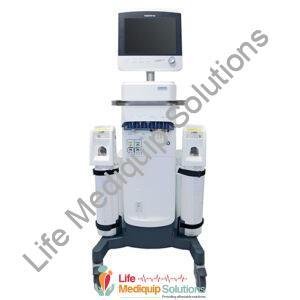

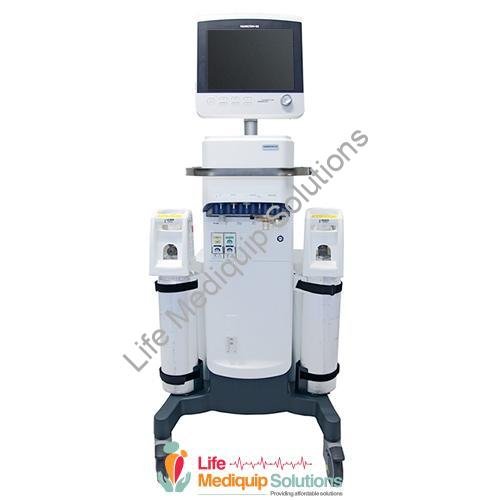

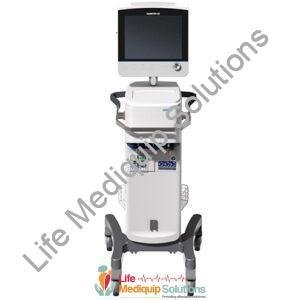

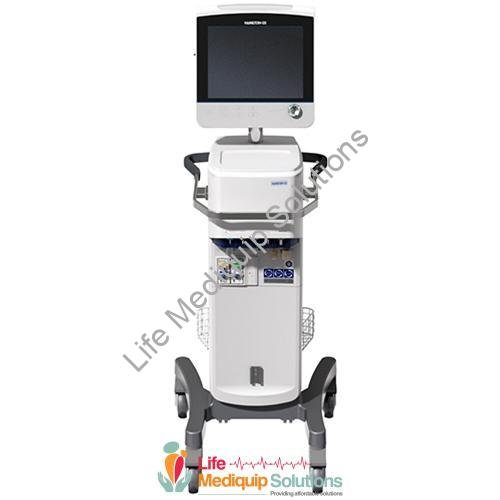

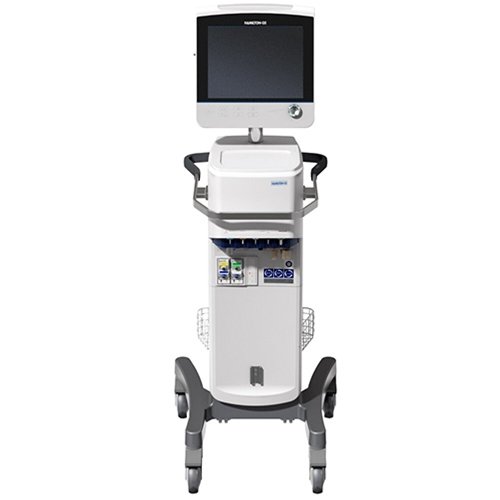

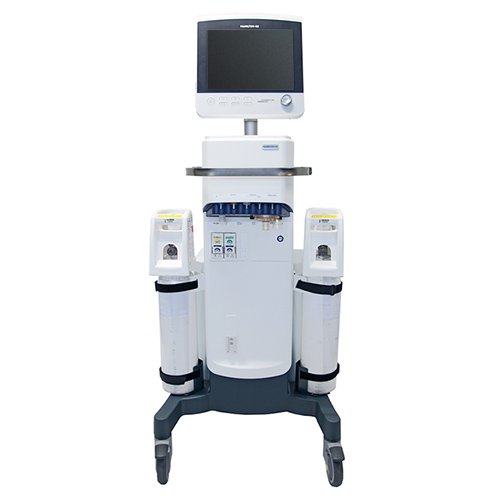

Hamilton G5 Features

The Hamilton G5 is a critical care ventilation system. The? Hamilton G5Plus?system offers a wide variety of settings and features that can be tailored to your needs. The Ventilator works for patients ranging from neonates to adults. The Hamilton offers everything from high-flow oxygen therapy, invasive ventilation options, and Adaptive Support Ventilation. The ventilation system is a touchscreen display that can show real-time data on the patient’s tidal volume, compliance, resistance, SpO2, and pulse rate.

• Real-time patient synchronization with IntelliSync+
• P/V Tool Pro for lung assessment and recruitment
• Transpulmonary pressure measurement
• High-flow oxygen therapy
• IntelliCuff integrated cuff pressure controller
• Ventilation of adult, pediatrics, and neonates
• Noninvasive Ventilation
• SpO2 Measurement
• Integrated Aerogen Nebulizer
• Capnostat CO2 Monitoring

Hamiltom G5 Ventilaor Sepcifications

Dimensions without Trolley

• Height: 17.3 in (44 cm)
• Width: 19.7 in (50 cm)
• Depth: 17.7 in (45 cm)
• Weight:93 lbs (42 kg)

Dimensions with Trolley

• Height: Min 51.2 in (130 cm)
• Height: Max. 59 in (150 cm)
• Width: 22.8 in (58 cm)
• Depth: 23.6 in (60 cm)
• Weight: 126 lbs (57 kg)

Temperature

• Operating Temperature: 10 to 40? C (50 to 140 ? F)
• Storage Temperature: -10 to 60? C (14 to 140? F); -40 to 70? C (-40 to 158? F) for Co2 sensor only
• Operating relative Humidity: 30 to 75%, non-condensing
• Storage Relative Humidity: 5 to 85%, noncondensing; <90%, noncondensing for Co2 sensor only

Pneumatic Gas Mixing System

• Delivered flow: 180 l/min peak flow, 120 l/min continuous flow, 4 to 30 l/min continuous base flow
• Delivered pressure: 0 to 100 cmH2O
• Operating pressure range: 2 to 6 bar (200 to 600 kPa/29 to 86 psi)

Pneumatic Connectors

• Inspiratory limb connector per ISO 5356-1: 22 mm male/15 mm female conical
• Expiratory limb connector (on exhalation valve): ISO 15 mm female/22 mm conical male
• High-pressure gas inlets: DISS (standard) (air CGA 1160-A, oxygen CGA 1240, heliox CGA 1180-A), NIST (optional), or NF (optional)

Electrical

• Input power: 100 to 240 V ac ? 10%; 50/60 Hz; 2.7 A maximum (at 100 V), 1.2 A maximum (at 240 V)
