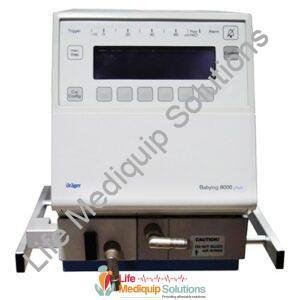

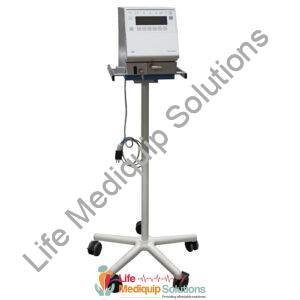

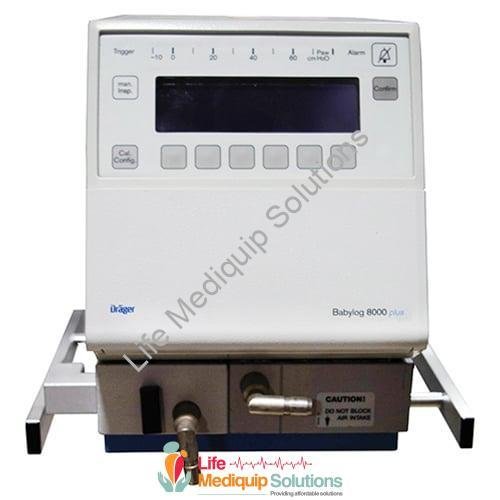

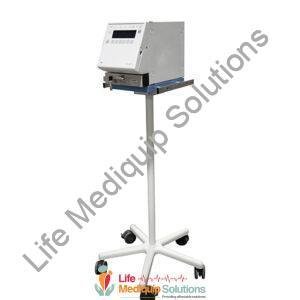

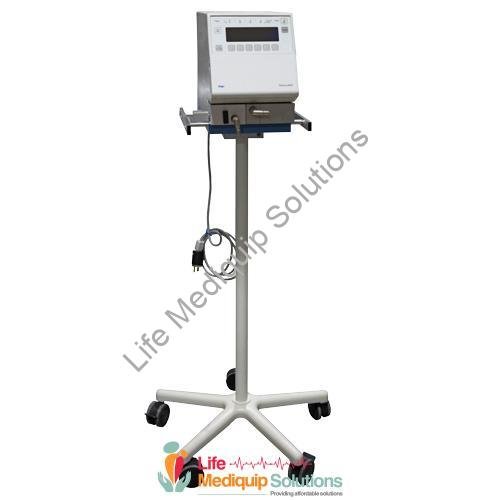

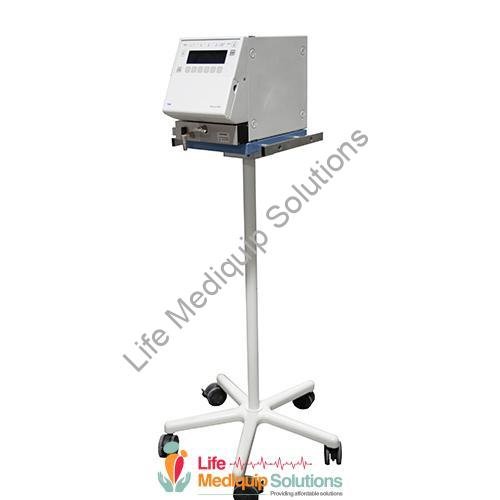

Drager Babylog 8000 Plus Features
The Drager Babylon 8000 plus?offers Non-invasive respiratory support for Neonatal patients, including premature babies, newborns, and infants with a weight up to 44lbs (20 kg). The Babylog was designed for harmonious ventilation which is a platform that can adapt to the necessary needs from spontaneous breathing to changes in lung conditions. The Drager Babylon 8000 plus is a high-frequency ventilation system, that can provide CPAAP and IMV modes. The system can monitor inspiratory oxygen concentration, airway pressure, flow, tidal volume, and breathing rate. The patient’s data can be transferred from the ventilator to either a patient monitor or a central monitoring station.
- Can be used on Neonatal and Pediatric patients under the weight of 44 lbs or 20kg
- Allows for optimal levels of spontaneous breathing
- The Volume Guarantee (VG) features combine the advantage of pressure and volume-controlled ventilation
- An integrated airway monitoring system that can display waveforms of pressure and flow
Drager Babylog 8000 Plus Specifications
Dimensions
- Height: 12.5 In (31.8 cm)
- Width: 8.4 In (21.5 cm)
- Depth: 15.2 In (38.5 cm)
- Weight: 32 lbs
Controls
- Control principle Continuous flow, pressure-limited,time-cycled
- Conventional ventilation IMV/IPPV, CPAP
- Triggered ventilation IMV, SIPPV, PSV1), Leak adapted
- Trigger Flow/volume trigger, Leak adapted
- Trigger delay approx. 30 ms
- High Frequency Ventilation1) 3) CPAP+HFV, IMV+HFV
- Frequency 5 to 20 Hz
- Volume Guarantee Ventilation1) SIMV+VG, SIPPV+VG, PSV+VG
- Oxygen mixer loss (bleed flow) 0 (zero) L/min
Settings
- Inspiratory Oxygen concentration 21 -100 vol. % oxygen
- Peak inspiratory pressure 10 to 80 bar
- PEEP/CPAP 0 to 25 bar
- Maximal frequency 200 bpm2)
- Inspiratory time 0.1 to 2 seconds
- Expiratory time 0.2 to 30 seconds
- Inspiratory flow 1 to 30 L/min
- Base flow (VIVE) 1 to 30 L/min
Monitoring
- Flow Monitoring at the Y-piece, integrated
- Volume Monitoring at the Y-piece, integrated
- Lung function monitoring Compliance, resistance C20/C, time constant
- FiO2 Monitoring integrated
- Real-time curves Flow and pressure, integrated
- Inspiratory Oxygen concentration 21 -100 vol. % oxygen
- Peak Pressure to 99 bar
- Mean Airway Pressure to 99 bar
- Graphic trends 6 parameters, integrated
- Logbook record of last 100 alarms
