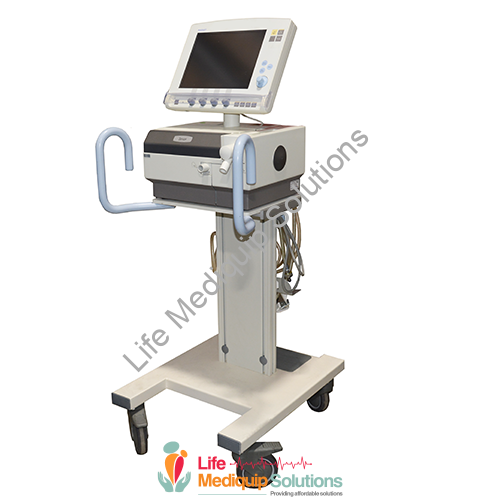

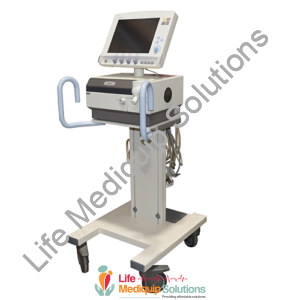

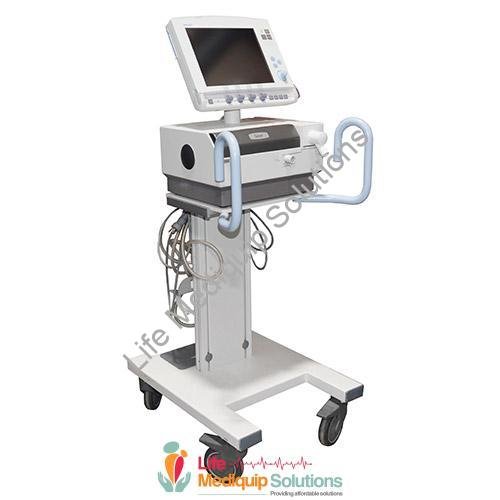

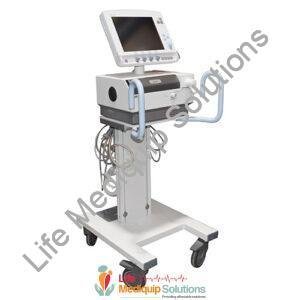

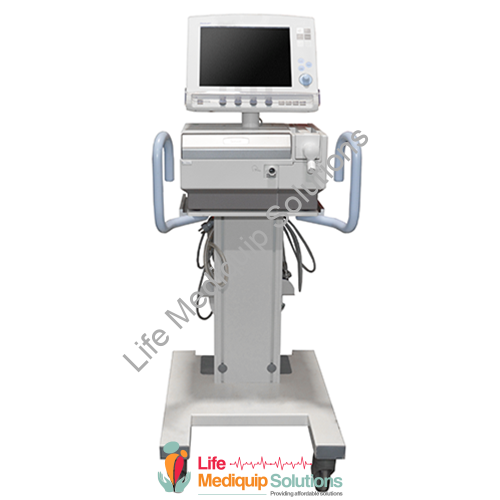

Siemens Maquet SERVO-s Features

The Getinge Maquet Servo-s? ventilator features a wide range of ventilation modes that can be tailored to specific clinical situations. The Servo-s has a large intuitive user interface that provides valuable decision-support information. This Maquet ventilator has been designed for both shelf mounting and in-hospital transport with a mobile cart. It supports invasive and non-invasive ventilation with leakage compensation for non-invasive ventilation modes for all patient types. If you’re looking for a similar model try the Servo-i ventilator.

• Invasive and non-invasive ventilation with leakage compensation.
• User-friendly user-interface.
• Rotary dial and direct access knobs for navigation.
• Designed for shelf mounting or intrahospital transport with a mobile cart.
• Quick inspiratory flow controller allows for reduced work of patient breathing.

Siemens Maquet SERVO-s Specifications

Dimensions

• Height: 20.5? (52 cm)
• Width: 15? (38 cm)
• Depth: 11.8? (30 cm)
• Weight: 44 lbs (20 kg)

Parameter Settings

• Inspiratory tidal volume (ml): 100? 2000
• Inspiratory minute volume (l/min): 0.5? 60
• Apnea, time to alarm (s): 15? 45
• PC/PS above PEEP (cmH2O): 0?(120 – PEEP)
• PC/PS above PEEP in NIV (cmH2O): 0?(62 – PEEP)
• PEEP (cmH2O): 0? 50
• PEEP in NIV (cmH2O): 2? 20
• CMV frequency (breaths/min): 4? 100
• SIMV frequency (breaths/min): 1? 60
• Breath cycle time, SIMV (s): 1? 15
• P_High?(cmH20): (PEEP + 1)?50
• T_High?(s): 0.2?30
• T_PEEP?(s): 0.1?10
• O2 concentration (%): 21?100
• I: E ratio: 1:10?4:1
• T_Insp?(s): 0.1?5
• T_Pause (% of breath cycle time): 0? 30
• Flow trigger sensitivity level: 0? 10
• Press. trigg sensitivity (cmH2O): -20?0
• Insp. rise time (% of breath cycle time): 0? 20
• Insp. rise time (s): 0? 0.4
• End inspiration (% of peak flow): 1? 70
• End inspiration in NIV (% of peak flow): 10? 70
• Oxygen Breaths: 100% for 1 minute
• Start Breath: Initiation of 1 breath (In SIMV mode initiation of 1 mandatory breath)
• Pause Hold: Insp. or exp (0? 30 seconds)

Screen

• Type: TFT-LCD module
• Size: 12.1? (31 cm) diagonal
• Viewing area: 9.7? x 7.3? (24.6 x 18.5 cm)

Backup Parameter Settings

• Inspiratory Tidal Volume (ml): 100? 2000
• PC Above PEEP (cmH2O): 5?(120 – PEEP)
• PC above PEEP in NIV (cmH2 O): 5?(62 – PEEP)
• CMV frequency (breaths/min): 4? 100
• I: E ratio: 1:10?4:1
• T_Insp?(s): 0.1?5

Power

• Power Supply, Automatic Range Selection: 100?120 V AC ? 10%, 50?60 Hz, or 220?240 V AC ? 10%, 50?60 Hz
• External 12 V DC: 12.0 V? 15.0 V DC, 10 A
• Battery Capacity: 2 rechargeable battery modules 12 V, 5 A, 3.5 Ah each
• Battery Backup Time: At least 1 h with 2 fully charged batteries
• Battery Recharge Time: Approximately 3h/battery
• Max Power Consumption: At 100?120 V: 2 A, 190 VA, 140 W; At 220?240 V: 1 A, 190 VA, 140 W

Controlled Invasive Ventilation

• PC (Pressure Control)
• VC (Volume Control)
• PRVC (Pressure Regulated Volume Control)
• Can be configured with alternative flow patterns: VC with flow adaptation; VC without flow adaptation; VC with decelerating flow

Supported Invasive Ventilation

• PS/CPAP (Pressure Support / Continuous Positive Airway Pressure)

Combined Invasive Ventilation

• SIMV (PC) + PS (Synchronized Intermittent Mandatory Ventilation)
• SIMV (VC) + PS
• SIMV (PRVC) + PS
• Bi-Vent/APRV (Airway Pressure Release Ventilation)

Non-Invasive Ventilation

• Leakage Compensation Level: Inspiratory, up to 200 l/min; Expiratory, up to 65 l/ min
• Leakage Overrange Detection: Automatic
• Disconnect Detection: Automatic
• Disconnect flow: Low; High; Disabled; Configurable 7.5 l/min; 40 l/min;
• Deactivates disconnect detection
• Connect Detection: Manual, or automatic via bias flow
