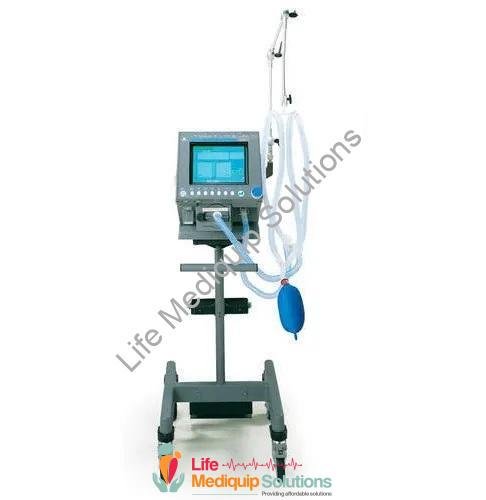

| PHILIPS V1000 ESPIRIT
Brand |
Philips |
| Model Name/Number | Esprit |
| Patient Age Group | Adult, Pediatric |
| Tidal Volume | 50 ml to 2500 ml |
| Ventilation Modes | Volume Controlled: Assisted/Control (A/C), SIMV, CPAP Pressure Controlled: Assisted/Control (A/C), SIMV Apnea: CPAP Non-invasive: Spont.; Spont./T |
| Respiratory Rate | 1 to 80 bpm |
Controls
| Trigger | Pressure Trigger: -20 to -0.1 cm H?0, Inspiratory Flow Trigger: 0.5 to 20 LPM Base Flow 3 LPM above flow sensitivity (with flow triggering), Expiratory Flow Trigger: 10 to 45% of peak flow |
Settings
| Inspiratory Pressure | 5 to 100 cm H?0 |
| PEEP/CPAP | 0 to 35 cm H?0 |
| Inspiratory time | 0.1 to 9.9 seconds |
| Inspiratory flow | 3 to 140 LPM (Compensated) |
Monitoring
| Peak Inspiratory Pressure | -20 to 130 cm H?0 (On Screen) |
| Inhaled/ Exhaled Tidal Volume | 0 to 9999 ml |
| RSBI | 0 to 500 (f/Vt) |
Performance
| Display unit size | Color 10.4 Touch Screen |
| Input / Output ports | RS-232 Output and Remote Communication |
| I:E Ratio | 9.9:1 to 1:99 |
| Minute volume | Spontaneous: 0 to 99.0 LPM, Expiratory: 0 to 60 LPM |
Operating Data
| Dimensions | 40.5 x 35.6 x 61 cm |
| Weight | 30 kg / 39 kg (w/Battery) |
| Options | 0 to 110% Oxygen Delivered Optional |
Alarm
| Apnea alarm time | 10 to 60 seconds |
| Audible Alarm Volume Adjustable | 54 to 77 db (complies with EN475 Standard) |
| Alarm Silence | 120 seconds |
| High Inspiratory Pressure | 10 to 105 cm H?0 |
| Low Inspiratory Pressure | 3 to 105 cm H?0 |
| High Respiratory Rate | 0 to 150 bpm |
| Expiratory Tidal Volume | Low Mandatory: 0 ml to 2500 ml, Low Spontaneous: 0 ml to 2500 ml |
Additional Details
| Waveform display Flow | Descending Ramp, Square |
| Expiratory Pressure | Parameters & Ranges: -20 to 130 cm H?0 (On Screen), Calculated Values: -20 to 120 cm H20 (On Screen) |
| Leakage Compensation | Up to 60 LPM |
| Expiratory Percent O? | 21 to 100% |
| Apnea Rate | 1 to 80 bpm |
| Volume Controlled Ventilation Plateau | 0 to 2.0 seconds |
| Spontaneous Flow | Up to 200 LPM (Uncompensated) |
| PSV Pressure | 0 to 100 cm H?0 |
| EPAP/CPAP Pressure | 2 to 25 cm H?0 |
| IPAP Pressure | 2 to 35 cm H?0 |
| Patient Leak | 0 to 140 LPM |
| Average Pressure | -20 to 120 cm H?0 (On Screen) |
| Plateau Pressure | -20 to 130 cm H?0 (On Screen) |
| Auto PEEP | -20 to 120 cm H?0 |
- Intuitive Menu Structure
- Upgradeable System Software
- Standard Simple Breathing Circuit And Filters
- Full Graphics Scalars, Loops And Trending
- Universal Power Supply Plus Battery Back-up
- Mounting Options (Carts And Wall Mount)
- Three-step Setting Change Process
- Prioritized Alarms
- No Need For Wall Air Or Compressor
- Emergency Care & ICU
The flexible Esprit Ventilator combines sophisticated design with easy-to-use features. This dual-platform (invasive and non-invasive) microprocessor driven ventilator offers a full range of modes and breath types in Volume Control Ventilation (VCV), Pressure Control Ventilation (PCV) and Non-Invasive Positive Pressure Ventilation (NPPV)
Esprit incorporates a fast response, high performance blower that removes the need for wall air source gas. Respironics exclusive Auto-TRAK ensures correct sensing of patient effort and leak compensation.
The Esprit features a full array of graphics to rapidly assess patient condition. Scalars, Loops, Trends and Respiratory Mechanics guide therapy with immediate, real time feedback concerning patient response to ventilator settings. This allows fast optimization specific to each individual patient. An optional communication package provides 2-way communication between Esprit and the NICO2 Cardiopulmonary Monitor with information displayed directly in Esprit trend graphs.
Full color, touch screen user interface is easy to read and operate. Intuitive menu structure provides a fast learning curve and easy to find settings. Simple patient breathing circuit enables fast and effective turn around between patients. Integrated self diagnosis screens accommodate rapid operation verification.
Esprit is a full featured, dual platform intensive care ventilator well suited for all patient populations and patient needs – neonate to adult.
