Drager Savina 300 Features

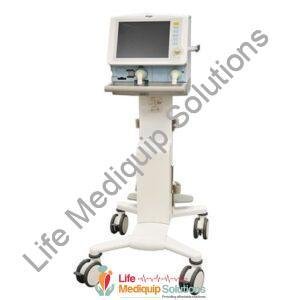

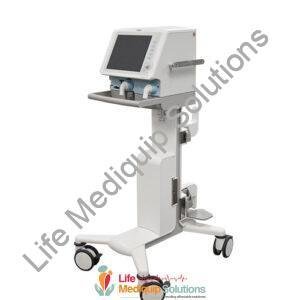

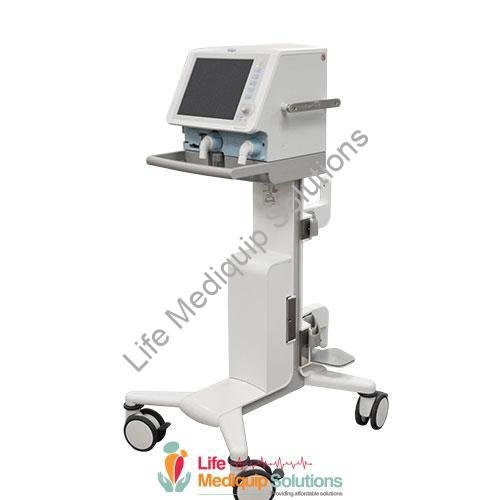

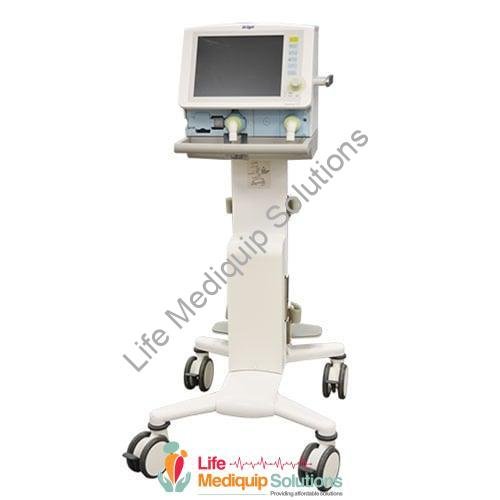

The Drager Savina 300 Ventilator was designed as a turbine-driven ventilation system. With the technology of a Turbine built in the Savina 300 can offer quick presence times and deliver continuous high-flow ventilation – up to 250 l/min. The system offers non-invasive ventilation for both adults and pediatric patients. The? Savina 300 Ventilator? offers a variety of different ventilation modes, volume, and pressure support along with spontaneous breathing support. The system has a highly effective sensitive leak management incorporated into the ventilation system reducing ventilation times. The Drager Savina 300 comes with a large color touchscreen which makes it easier to configure to each individual patient’s needs.

• Intuitive for simple operation and quick configuration
• Draeger-wide standardized user interface provides confidence in use and reduces training time
• Quick operational readiness with an automatic device check
• Intelligent alarm handling for a quick response to patient alarm situations
• Smooth and sealed surfaces for easy cleaning and disinfection
• Huge range of ventilation modes (e.g. PC-APRV, VC-MMV, AutoFlow)
• Stress-free spontaneous breathing with excellent trigger response time thanks to the turbine
• Free-breathing with AutoFlow in volume constant ventilation at a minimum pressure level

Drager Savina 300 Specifications

Ventilation Modes

• VC-CMV / VC-AC
• VC-SIMV
• VC-MMV (optional)
• PC-APRV (optional)
• PC-BIPAP1) / PC-SIMV (optional)
• PC-AC (optional)
• SPN-CPAP

Optional Enhancements

• AutoFlow? Automatic adaption of the inspiratory flow in volume-orientated ventilation modes
• NIV? Non Invasive Ventilation with optimized alarm systems and automatic leakage compensation
• Capnography – Mainstream CO2 measurement
• MonitoringPlus – Loops, Trends, user Logbook
• LPO – Low Pressure Oxygen. Independent oxygen supply
• Nurse call – Connection for transmitting alarm signals to a central, alarm system

General

• Patient type: Adult, pediatric
• Respiratory rate: 2/min to 80/min
• Inspiration time: 0.2 to 10 s
• Tidal volume: 0.05 to 2.0 L, BTPS2) with option PediatricPlus 0.02 to 2.0 L
• Inspiratory pressure:: 1 to 99 bar (or hPa or cmH2O)
• PEEP/interm. PEEP 0 to 50 bar (or hPa or cmH2O)
• Pressure support/?Psupp: 0 to 50 bar (or hPa or cmH2O) (relative to PEEP)
• Flow acceleration: 5 to 200 mbar/s (or hPa/s or cmH2O/s)
• O2-concentration: 21 to 100 Vol. %
• Trigger sensitivity (Flow trigger): 1 to 15 L/min
• Inspiratory termination criterion: 5 to 75 % PIF (peak inspiratory flow)
• PC-APRV (optional):
  • Inspiratory time Thigh 0.2 to 22.0 s
  • Expiratory time Tlow 0.1 to 22.0 s
  • Inspiratory pressure Phigh 1 to 95 bar (or hPA or cmH2O)
  • Expiratory pressure Plow 0 to 50 bar (or hPA or cmH2O)

Displayed Measured Values

• Airway pressure measurements Max. airway pressure, plateau pressure, mean airway pressure, PEEP 0 to 99 bar (or hPa or cmH2O)
• Minute volume (MV): Total MV, spontaneous MV 0 to 99 L/min, BTPS
• Tidal volume: Inspiratory VT, expiratory VTe, VTspon 0 to 3999 mL, BTPS
• Total respiratory rate: Total and spontaneous respiratory rate, 0 to 150/min
• Inspiratory O2-concentration: 21 to 100 % Vol.
• End-tidal CO2 concentration: EtCO2 0 to 100 mmHg (or 0 to 13.2 Vol% or 0 to 13.3 kPa)
• Breathing gas temperature: 18 to 48? C (64.4 to 118.4 ? F)
• Curve displays: Paw(t), Flow (t), Tidal volume (t), CO2 (t)
• Ventilation ratio (I: E): 1:150 to 150:1
• Compliance C: 0.5 to 200 mL/bar (or mL/hPa or mL/cmH2O)
• Resistance R: 3 to 300 mbar/L/s (or hPa/L/s or cmH2O/L/s)
• Leakage minute volume MVleak: 0 to 100 %
• Rapid shallow breathing RSB: 0 to 9999 (1/min/L)
• Special Maneuvers (optional):
  • Intrinsic PEEP PEEPi 0 to 100 bar (or hPa or cmH2O)
  • Exp. Hold

Alarms

• Airway pressures: high/low
• Expiratory minute volume: high/low
• Tidal volume: high/low
• Apnea-alarm time: 15 to 60 sec
• Spontaneous breathing frequency: high
• Inspiratory O2-concentration: high/low
• Inspiratory breathing gas temperature: high
• EtCO2: high/low

Performance Data

• Maximum (continuous) inspiratory flow: 250 L/min
• Valve response time T0?90: ? 5 ms
• Control principle: time-cycled, volume-controlled, pressure limited
• Safety valve opening pressure: 120 bar (or hPa or cmH2O)
• Emergency valve: automatically enables spontaneous breathing with filtered ambient air if air and O2 supply should fail.
• Automatic gas switch-over function if O2 supply fails
• Output for pneumatic medication nebulizer: synchronized with inspiration
• Leak compensation:
  • optimized patient-ventilator synchrony adjusts the flow trigger and the inspiratory termination criteria for leaks.
  • tube application: up to 10L/min
  • NIV VC-modes: up to 25 L/min
  • NIV PC modes: unlimited

Operating Data

• Mains power connection: 100 V to 240 V, 50/60 Hz
• Current consumption: max. 1.3 A at 240 V, max. 3.4 A at 100 V
• Battery: internal typically 45 min (optional extension up to 5 h)
• Turbine exchange interval: 8 years, with no limit on operating hours during this interval

Digital Machine Outputs

• Digital output and input via an RS 232 C interface
• Dr?ger MEDIBUS and MEDIBUS.X

Gas Supply

• Air Turbine technology
• O2 gas supply 3 bar (43.5 psi) – 10 % up to 6 bar (87 psi)

Dimensions and Weights

• Dimensions W x H x D (without trolley) 460 x 383 x 364 ?2 mm (18.11 x 15.08 x 14.33 ?0.08 inch)
• Weight (basic device) approx. 26 kg (57.3 lbs) without trolley
• Diagonal screen size 12″ TFT color touchscreen
