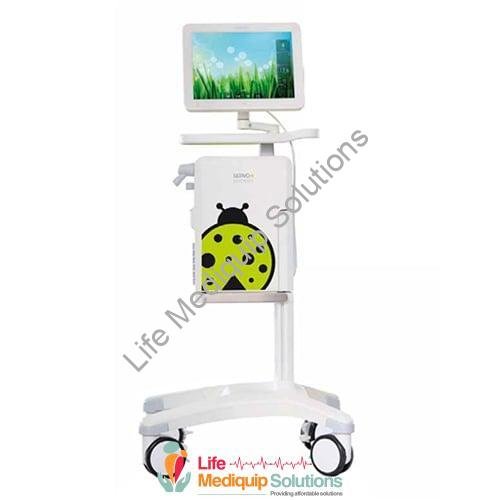

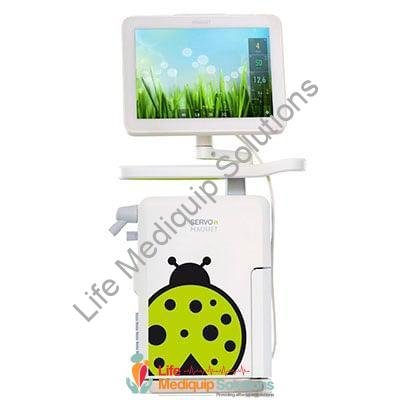

Maquet Servo-n Features

The Maquet Servo-N ?is a neonatal ventilator. The Servo-N The system helps provide ventilation support to the neonate while protecting the lungs, brain, and other developing organs of the baby. offering both invasive and non-invasive ventilation with a variety of different modes, along with monitoring and diagnostic features can improve the quality of breathing for the baby, allowing it to rest and grow. through the Servo- N you can monitor the Newborn’s respiratory rate, small tidal volumes, irregular breathing patterns, and short inspiratory times.

• Intuitive setup, monitoring, and operation.
• Monitors the electrical activity of the diaphragm (Edi).
• Neurally Adjusted Ventilatory Assist (NAVA), a ventilation mode with the ability to match support to the irregular breathing patterns of neonates.
• Compensates for variable leakage in both invasive and non-invasive modes of ventilation.
• The ability to deliver tidal volumes as low as 2ml in patients as small as 0.6 lbs (0.3kg).

Maquet Servo-n Specifications

Dimensions (Without Cart)

• Height (Includes user interface): 32.5 in (82.6 cm)
• Width: 14.4 In (36.8 cm)
• Depth: 8.1 In (20.5 cm)

Weight (Without Cart)

• Approx. 50 lb 11 oz (23 kg)
• Patient unit 33 lb 1 oz (15 kg)
• User interface 8 lb 13 oz (4 kg)
• Handle 7 lb (3 kg)
• Cable holder and cable 2 lb 3 oz (1 kg)

Dimensions (With Cart)

• Height (Includes user interface): 53.8 in (136.8 cm)
• Width (Includes Wheels): 25.4n (64.7 cm)
• Depth (Includes Wheels): 21.5 In (54.7 cm)

Weight (With Cart)

• Approx. 77 lb 3 oz (35 kg)
• Base system approx. 50 lb 11 oz (23 kg)
• Mobile cart 27 lb 9 oz (12.5 kg)

General

• Patient range:
  • Neonatal: 10.6 oz to 17 lb 10 oz (0.3 to 8 kg)
  • Pediatric: 6 lb 10 oz to 66 lb 2 oz (3 to 30 kg)
• Bias Flow: 0.5 l/min
• Internal Compressible Factor: Max. 0.2 ml/cmH2O
• Gas Delivery System: Microprocessor-controlled valves
• Maximum Airway Pressure: 125 cmH2O
• Method of Triggering: Flow, pressure, and Edi (with Edi module and Edi catheter)
• Inspiratory Flow Range: 0 to 33 l/min
• Pressure drop:
  • Max. 6 cmH2O at a flow of 60 l/s (insp. channel)
  • Max. 3 cmH2O at a flow of 60 l/s (exp. channel)
• PEEP Regulation: Microprocessor-controlled valve
• Rise Time, Expiratory Flow Measurement: <12 ms for 10% to 90% response at the flow of 3 to 192 l/min
• Expiratory Flow Range: 0 to 192 l/min

User Interface

• Type TFT-LCD touchscreen
• Size 14.4 x 11.8 in (36.6 x 30 cm)
• Viewing area 15 in XGA, 1024 x 768 pixels with a 24-bit color palette
• Weight Approximately 8 lb 13 oz (4 kg)
